Compact education CNC lathe, the most space-efficient CNC machine designed for educational settings. This compact, small education CNC lathe is the ideal introduction to CNC machining for students, capable of performing intricate turning and high-precision small part manufacturing.With an industry-standard SINUMERIK 808D control, allowing students to gain hands-on experience with the same technology used in professional settings. With the ability to cut light materials and turning metals, this machine bridges the gap between classroom learning and real-world manufacturing, preparing students for high-wage, high-demand careers in advanced manufacturing.Equip students with practical skills and experience using the same control systems found in the industry,prepare students for the workforce with hands-on experience in modern machining and manufacturing processes.

Chuck with three jaws

100mm 4 inch self-centering,optional 4-jaw chuck.Use cast iron spindle box,It has good rigidity and stability, which benefits to the machining precision.Spindle with encoder, capable of turning threads.

Lubrication system

This machine is designed with a guide rail lubrication system, for extended machine lifespan.

Efficient Cooling and Filtration

Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools . With manual and g-code automatic control.

Automatic tool change

Equipped with a 4-station automatic tool change for processing more complex parts,optional 8-station automatic tool change.Turning tool specifications is 12*12mm .

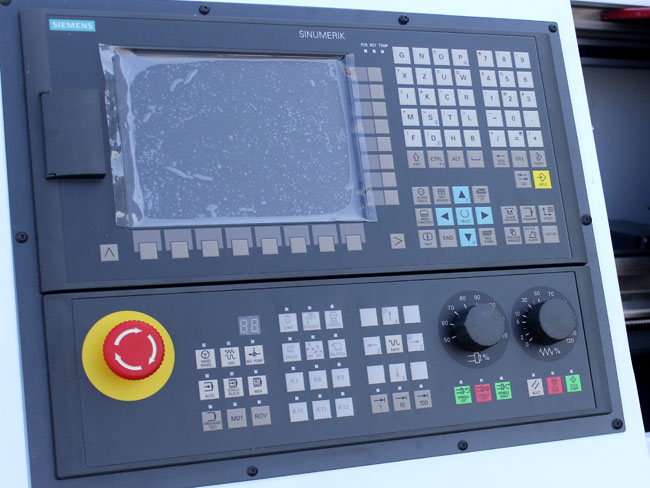

SINUMERIK 808D Controller

SINUMERIK 808D ADVANCED brings impetus into basic turning and milling machines. CNCs from the global technology leader, teamed-up with a revolutionary operating concept make the SINUMERIK 808D ADVANCED the perfect entry into the world of CNC.

Machine tool body

Machine tool bod selection of high-quality casting materials,with lathe tailstock,semi-automatic lubricSation system,protect the rail life and ball screws for unmatched precision.

Technical parameters
Description	Standard	Optional
Positioning accuracy:	0.02mm
Repeatability accuracy	0.03mm
Control system	SINUMERIK 808D	FANUC Series Oi-TF Plus
Automatic tool change system(ATC)	4 Tools	8 tools
Turning diameter over bed(max)	210mm
Chuck diameter	100mm
Spindle speed	300-1800r/min
Spindle through-hole	26mm
Spindle mount	MT4
Spindle motor power	1100W
Work-piece cooling	Water Cooled /29L
X axis travel	90mm
Z axis travel	300mm
X/Z axis motor	400W Servo Motor
The max moving speed	8000mm/min
The max feeding speed	4000mm/min
Full cast iron	Full cast iron
MPG handwheel	4 axis
Tool dimension	12×12mm
Tailstock taper	MT2
Tailstock sleeve diameter	20mm
Travel of tailstock	25mm
Power	380VAC (3 Phase)
Weight(NW/GW)	280/320KG

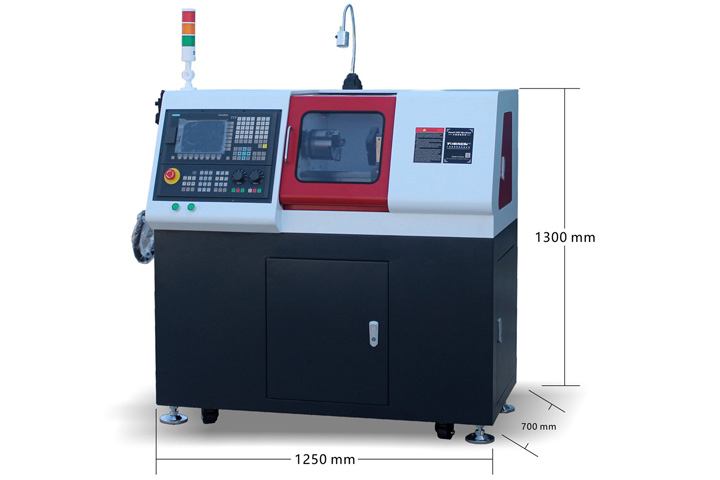

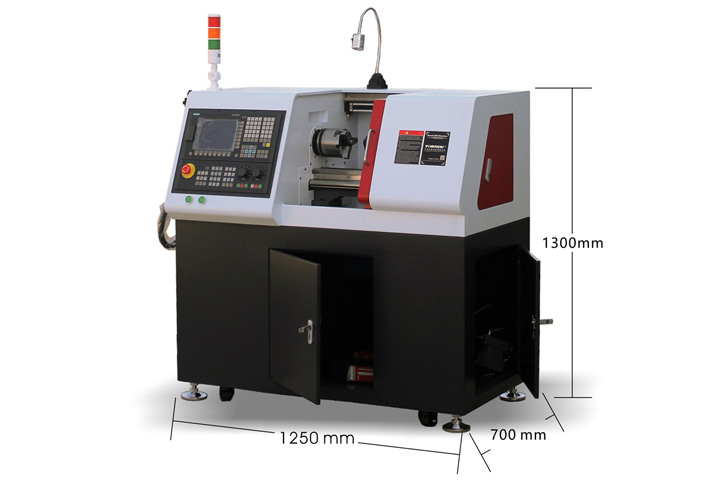

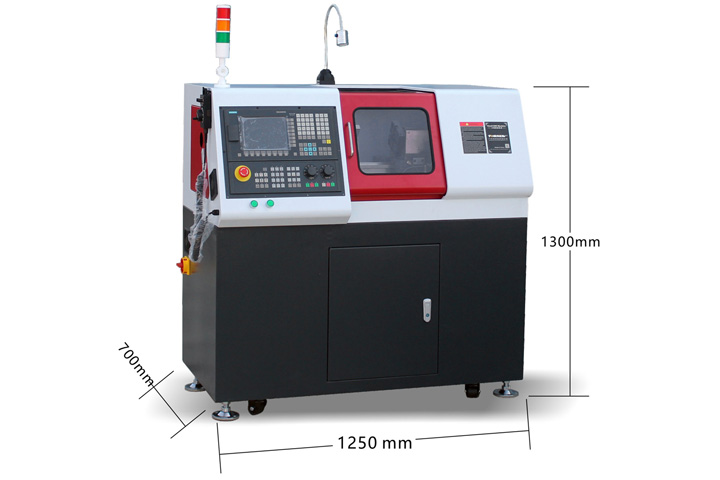

Overall dimension	1250×700×1300mm
Packing size	1400×860×1500mm
